Dimensions |
|
L x W x H |
12.5" x 3.73" x 3.23" |
Air Discharge |
9.57" x 1.375" |
Blower, Motor & Bearing |
|
Type |
AC Shaded Pole |
Rotation |
CW |
Blade Type |
Metal |
Housing Material |
Aluminum |
Bearing Type |
Ball |
Outboard Bearing Type |
Ball |
Bearing Lubrication |
High Temp |
Motor Insulation |
Class H (rated to 392°F) |
Motor RPM |
3000 |
Motor Connection |
Male spade terminals |
Variable Speed Compatible |
Yes |
Airflow |
|
CFM |
130 |
Installation |
|
Mounting Type |
Included Velcro, tape and noise reduction padding. Pre-installed. |
Electrical |
|
Volts |
115 |
Motor Frequency |
60 Hz |
Watts |
35 |
Amperage |
0.30 |
Power Cord |
Not included |
Power Cord Length |
N/A |
Power Cord Type |
N/A |
Accessories |
|
Cross Support Brace |
Optional (included with kits only) |

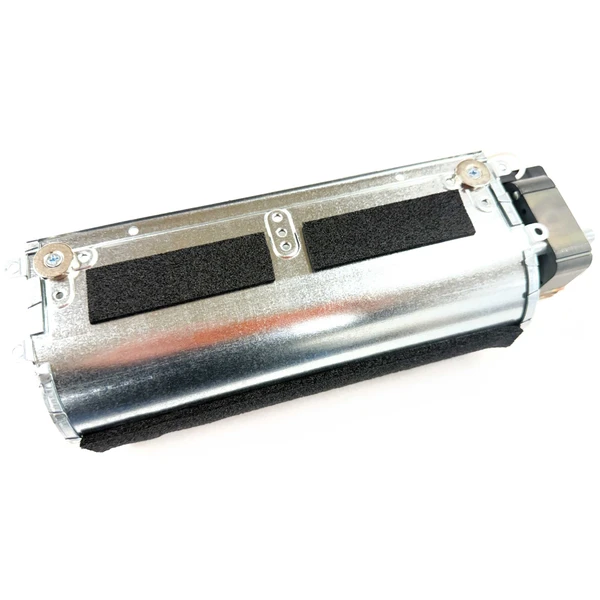

Noise Reduction Padding & Velcro |
Yes, blower comes standard with new Velcro and noise reduction padding. |
Other |
|
Packaging Materials |
Shipping box, bubble wrap, foam |
Compatibility |
|
Majestic |
33XDV, 36XDV, 39XDV, 360DVS, 36CFDV, 33BDVR, 36BDVR, 39BDVR, 43BDVR, 33BDVT, 36BDVT, 39BDVT, 43BDVT, 36CDVX, 36CDVZ, A232, BC36, BC36i, BC42, BC42i, BHDR36, BHDT36, D232, DBR33, DBR36, DBR39, DBT33, DBT36, DBT39, 300DVB, 400DVB, 500DVB, 600DVB, 300DVBH, 400DVBH, DVB4136, DVR33, DVR36, DVR39, DVBR36, DVBR42, DVRT36, DVRT39, DVRT41, DVRT43, DVT36, DVT39, DVT43, DVTS2, DVRSL, DVRSR, FSUV, DV360, DV580, 33LDVR, 36LDVR, 39LDVR, 43LDVR, 33LDVT, 36LDVT, 39LDVT, 43LDVT, LHEC20, LHEC30, LHECDV20, LHECDV30, NV360, NV580, NVBC36, NVBC42, NVC36, NVC39, NVC43, RDV4136, RFS22, RFS32, RFS42, RFSDV22, RFSDV32, RFSDV42, RHE25, RHE32, RHE42, RHEDV25, RHEDV32, RHEDV42, RUVS32, TL36, TL42, UVC33, UVC36, UVC43, UVSRC36, UVSRC42, UVS33, UVS36, UVS43, UV33C, UVBC33, UVBC42, UVDC36, UVDC42 |
Monessen |
BC36, BC42, CDVR33, CDVR36, CDVR42, CDVR47, CDVT33, CDVT36, CDVT42, CLDVD, CRDVD, CRLDVNS, CRDLVPS, HBDV300, HBDV400, IDV380, IDV490, SC36A, SC42A |
Northern Flame |
A232, D232, DBR33, DBR36, DBR39, DBT33, DBT36, DBT39 |
Temco |
36CDVR, 36CDVX, 33RDV, 36RDV, 39RDV, 33RDVD, 36RDVD, 39RDVD, 33TDV, 36TDV, 39TDV, 33TDVD, 36TDVD, 39TDVD, 41DV, VF36 |
Vermont Castings |
33BDVR, 36BDVR, 39BDVR, 43BDVR, 33BDVT, 36BDVT, 39BDVT, 43BDVT, 33XDV, 36XDV, 39XDV, 36CFDV, 36CDVX, 36CDVZ, A232, BHDR36, BHDT36, CDVR33, CDVR36, CDVR42, CDVR47, CDVT33, CDVT36, CDVT42, CDVT47, D232, DBR33, DBR36, DBR39, DBT33, DBT36, DBT39, LHEC20, LHEC30, NV360, NV580, NVBC36, NVBC42, NVC36, NVC39, NVC43, 300DVB, 400DVB, 500DVB, 600DVB, 300DVBH, 400DVBH, DVB4136, DVR33, DVR36, DVR39, DVBR36, DVBR42, DVRT36, DVRT39, DVRT41, DVRT43, DVT36, DVT39, DVT43, DVTS2, DVRSL, DVRSR, RFS22, RFS32, RFS42, RFSDV22, RFSDV32, RFSDV42, RHE25, RHE32, RHE42, RHEDV25, RHEDV32, RHEDV42, RUVS32 |
