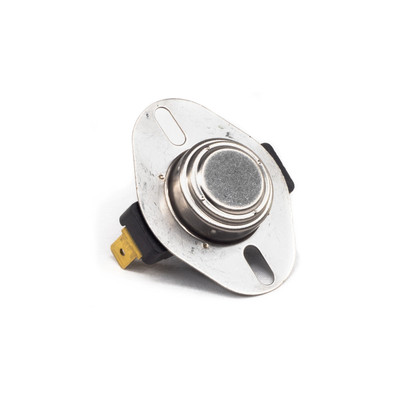

Automatic Snap Disc Thermostat Sensor on Magnetic Bracket

56 reviews Write a Review
$26.00
SKU:
CA120-MAG
UPC:
658354090996
Condition:
New
Availability:
Ships in 1 - 2 business days
Shipping:
Ships to USA & Canada

Our custom magnetic thermostat bracket fitted with a highly reliable snap sensor. The sensor is riveted into the bracket to ensure stability and mounts magnetically to the underside of your fireplace. Can be used in universal blower kits, attaches easily and is simple to replace. Used in several of our aftermarket blower kit applications.

1/2" Disc Thermostat, US-602SYSHAS45120F30, Closes on rise 120°F ± 7°F, Resets at 90°F ± 11°F, Solder terminals, Surface mount bracket, 45deg orientation.

Product Details

Specifications
CA120
Series 1/2" disc
Type Automatic reset
Function Close On Rise (Normally Open)
Open Temperature 90°F ± 11°F
Close Temperature 120°F ± 7°F
Mounting / Sensing Surface
Electrical Rating 125VAC, 15Amps/250VAC, 8Amps, Resistive, 100,000 Cycles 120VAC, 5.8FLA, 34.8LRA/240VAC, 2.9FLA, 17.4LRA, Inductive, 100,000 Cycles (200mA minimum) Gold contacts: 30VDC,1Amp, 120VAC, 125VA/240VAC, .5A, 100,000 Cycles (5VDC, 1mA minimim)
Environmental -40°F-350°F (-40°C-176.6°C)
Dielectric Strength 1.500 VAC/1 minute
Approvals UL, C-UL, RoHS
Documents
Datasheet Download
  • No more turning blower on/off with Snap Disc
    5

    Posted by RV on Jan 31st 2023

    The snap disc is a great addition to your wood stove blower. Added one to mine and it is awesome. No more remembering to turn blower on or off. fireplaceblowersonline is an A+ business and Jason Baker is the one to call with questions. He is very helpful, professional and courteous.

  • snap disc
    4

    Posted by Thomas Wilson on May 19th 2022

    Cant give a bad review with so many good ones but so far my new snap disc has not been able to shut fan off after successfully turning the blower fan on about 5 minutes into a heat cycle. This could be because we are now in spring time and temps are naturally higher, at least that is what I am hoping. With its + or - rating of 11F from 90F shut off temp. it should shut blower off @ or below 79F. Has not done this yet.

  • Works like new
    5

    Posted by Unknown on Nov 8th 2021

    I had to replace this because my blower would no go off anymore for hours. This worked just fine and was basically and exact replacement.
