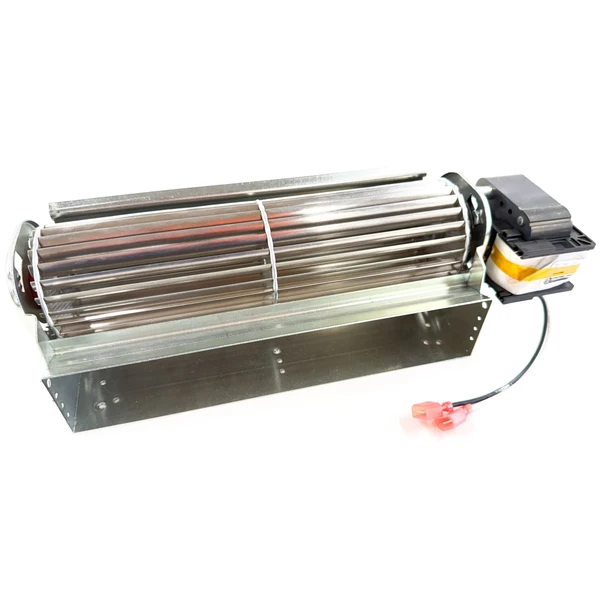

Our aftermarket #250-03861 replacement blower for Avalon, Lopi, Fireplace Xtrordinair and Travis stoves, inserts and fireplaces is a 100% ball bearing replacement that closely matches the size of the original blower. Also replaces #250-00589 and #98900755A. The blower will fit Avalon and Lopi small pellet stoves (Newport, Newport Bay, Pioneer and Pioneer Bay) and most Avalon, Lopi, Fireplace Xtrordinair and Travis gas inserts, gas fireplaces and gas stoves. More powerful, quiet and better built than the original blower, which often used plastic and brass end cap bearings.
** Genuine OEM 250-03861 Replacement Blower
Cross Reference - G3(*), G7-G10, G14-G16, G18, G21-G26, G28, G31, G33-G35 and G39. See full compatibility list below.
Please note: Does not include mounting plate (#99000200) and hardware, so you'll need to re-use the OEM mounting bracket, rubber grommets (#93005017) and brass spacers (#93005017) from original kit. For the 1995 Avanti DV, the original blower was slightly longer, but was ultimately replaced with a smaller blower. You will either need to replace the mounting bracket with #99000200, or drill new holes in the bracket you currently have to accommodate the hole pattern of the new blower.
In most cases, the blower will mount to your existing bracket with little to no alterations required. Before purchasing, please confirm dimensions or contact us directly to discuss your setup. This blower produces just as much air flow as the original, uses superior bearings and has a more efficient motor. Carries a full 1 year replacement warranty from FireplaceBlowersOnline.com.
If you're installing a blower for the first time, a blower kit may be required. Replacement blowers are intended to replace worn or defective blowers and do not include the components of a full blower kit.
Benefits of Adding a Fireplace Blower
- Improves fireplace efficiency by as much as 80%
- Helps reduce costly energy bills
- Heats large rooms effectively
- Installs quickly and easily
- Affordable and efficient
Read More
Included With Purchase
- Aftermarket ball bearing blower
Product Details
|
Specifications
|
Dimensions |
|
L x W x H |
12 3/4" x 4 1/4" x 3 9/16" |
Air Discharge |
9.50" x 2.0" |
Blower, Motor & Bearing |
|
Type |
AC Shaded Pole |
Rotation |
CW |
Blade Type |
Metal |
Housing Material |
Aluminum |
Bearing Type |
Ball |
Outboard Bearing Type |
Ball |
Bearing Lubrication |
High Temp |
Motor Insulation |
Class H (rated to 392°F) |
Motor RPM |
3000 |
Motor Connection |
Male spade terminals |
Variable Speed Compatible |
Yes |
Airflow |
|
CFM |
130 |
Installation |
|
Mounting Type |
Mounts directly to bracket assembly |
Electrical |
|
Volts |
115 |
Motor Frequency |
60 Hz |
Watts |
99 |
Amperage |
0.86 |
Power Cord |
Not included |
Power Cord Length |
N/A |
Power Cord Type |
N/A |
Accessories |
|
Cross Support Brace |
Optional (included with kits only) |
Noise Reduction Padding & Velcro |
Optional |
Other |
|
Packaging Materials |
Shipping box, bubble wrap, foam |
Compatibility |
|
Avalon, Lopi, Fireplace Xtrordinair, Travis |
Lopi and Avalon Small Pellet stoves (Newport, Newport Bay, Pioneer and Pioneer Bay) and most Avalon, Lopi and Fireplace Xtrordinair Gas inserts, Gas Fireplaces and Gas Stoves. See owner's manual to confirm fitment and part numbers. Fits DVL / DVS EF fireplace and insert. |
Documents |
|
Installation Instructions |
On Request |
Video Library |
|
Comparison |
Watch Now |
Also Known As
- 250-03861
- 250-00589
- 98900755A
