51D0011 (20302546K) Vermont Castings, Lexington Forge Blower Assembly Kit

1 reviews Write a Review
$189.95
SKU:
51D0011-AMP
UPC:
658354090378
Condition:
New
Availability:
Ships in 1 - 2 business days
Shipping:
Ships to USA & Canada

51D0011 blower kit assembly (#20302546K) for Vermont Castings and Lexington Forge fireplaces and stoves. Features a powerful and quiet 180 CFM ball bearing blower.  This blower kit is assembled, tested and packaged in the United States and backed by a full 1 year warranty.  Kit includes blower, power cord, wiring harness and variable speed controller.

Benefits of Adding a Fireplace Blower
    • Improves fireplace efficiency by as much as 80%
    • Helps reduce costly energy bills
    • Heats large rooms effectively
    • Installs quickly and easily
    • Affordable and efficient
Read More

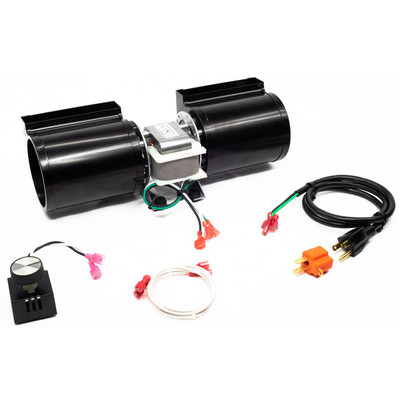

Included With Purchase
  • 180 CFM ball bearing blower assembly
  • Pre-wired for easy installation
  • Rheostat variable speed controller
  • Rubber isolation feet for noise reduction
  • Heavy duty grounded 3 prong power cord
  • 3 to 2 prong outlet adapter
  • Installation instructions
  • 1 year warranty
Product Details

Specifications
Dimensions
L x W x H 12.80" x 4.5" x 4.25", removing rubber feet drops height to 4 1/16"
Air Discharge 4.75" each blower
Blower, Motor & Bearing
Type AC Shaded Pole
Rotation CW/CCW
Blade Type High temperature rated composite
Housing Material Steel powder coated black
Bearing Type Ball
Outboard Bearing Type N/A
Bearing Lubrication High Temp
Motor Insulation Class H (rated to 392°F)
Motor RPM 3000
Air Flow
CFM 180 CFM
Installation
Mounting Type Free standing, bracket has 4 rubber grommets that are attached to bracket and can be used to secure blower with hardware if needed.
Electrical
Volts 115
Motor Frequency 60 Hz
Watts 184
Amperage 1.60
Power Cord Yes
Power Cord Length 3 ft
Power Cord Type 3-prong grounded
Accessories
Rheostat Variable Speed Controller Yes
Thermostat N/A
Thermostat Type N/A
Thermostat Temperature N/A
Other
Packaging Materials Shipping box, bubble wrap, foam
Compatibility
Lexington Forge LX36
Vermont Castings See owner's manual for part references.
Documents
Installation Instructions On Request
  • Perfect
    5

    Posted by Alan on Mar 26th 2022

    Fan and thermostat work great on my wood stove. I usually keep the fan low as it puts out plenty of air.
